Cafemino® with your brand identity
Cafemino® offers a wide range of branding options for Cafe’s, Cafe and retail chains including corporate color applications and logo printing or engraving.
Cafe owners, 3rd wave coffee specialists, micro-roasteries and retail chains, seeking for freshness and perfection of sensory properties (smell, aroma, taste, etc.) of their coffee, prefer Cafemino® in 76+ countries around the globe.
Specialty roasting with niche bean varieties and following unique gourmet profiles upon customers’ request is applicable with Cafemino®’s unique ability of roasting even 50 g of coffee beans.
Standard features & equipment
- Capable of roasting 50 - 1,000 g per batch
- Roasting up to 6 kg/h
- Slow / fast roasting
- Adjustable digital thermostat
- Adjustable burner flame height in Cafemino® Gas
- Hot air regulation valve
- Green coffee chamber sight glass
- Sampling spoon and sight glass for roasting control
- Special color temperature light for color testing
- High performance cooling tray and fan system
- Simultaneous roasting and cooling
- Seperate cyclone chaff collector (free)
- Chaff collection drawer under the drum
- Cropster compatible profile roasting option
- Exclusive stand
- Hard case shipping
Safety & fire prevention in Cafemino® Gas
- Digitally controlled electronic ignition system
- Gas flow failure system
- Pilot control
- Fire prevention system
- UL certificated electric panel
Cafemino clients receive special free roasting training at Toper Coffee Academy.

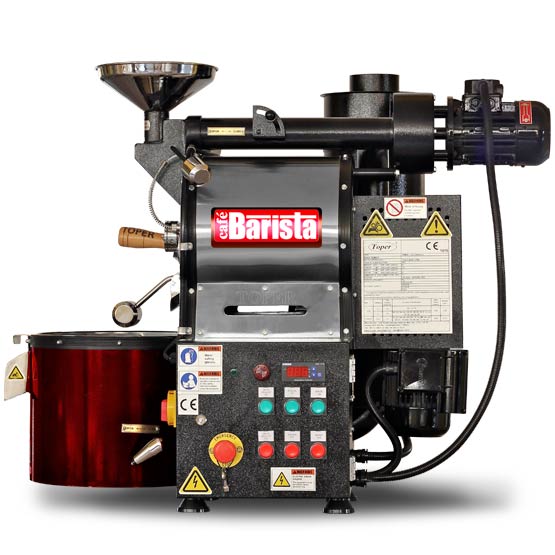

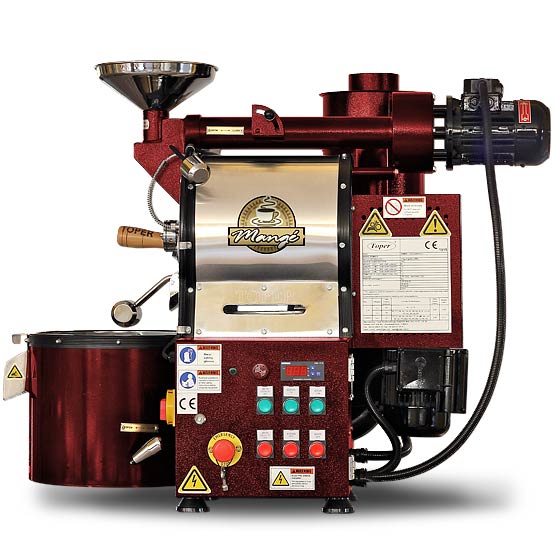

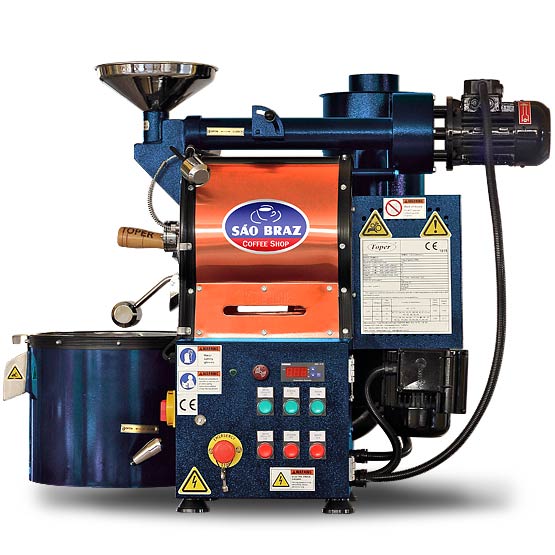

While customizing Cafemino®, all corporate colors shall be used matching RAL and other color matching systems.
Various logo applications are available upon request.
Sheet metal options for the body are:
- Chrome
- Brass
- Copper
Other customization options include:
- Custom finishing options (anodizing, plating, powder coating, matte or shiny surface finishing)
- Logo printing
- Logo engraving
- Corporate logo on sampling spoon
Technical drawing is a general blueprint of the product series and it is for illustrative purposes only. Please contact Toper for the exact technical drawing of the model of your choice.
TKM - SX1E Cafemino® Electric
| Roasting capacity (kg/h) | Light 6 - Dark 5 |
|---|---|
| Roasting time (minutes) | Light 10 - Dark 12 |
| Batch capacity (kg) | 50 - 1,000 g green coffee beans |
| Dimensions (W-H-D) cm | 81 x 100 x 52 |
| Recommended installation area (W-H-D) cm | 100 x 150 x 100 |
| Weight (kg) | 95 |
| Voltage | 110 - 220 - 230 - 380 - 415V |
| Frequency | 50 - 60 Hz |
| Heat source | Digitally controlled - 5.5 kW |
| Heating system | Electric heated thermal transfer |
| Number of motors | 3 |
| Power consumption (kW/h) | 5.57 |
| Power requirement (A) | 1PH 25.3 - 3PH 14.6 |
| Body type | Stainless steel, brass |
| Ambient temperature range (°C) | +4 / +40 |
| Exhaust outlet Ø (mm) | 100 |
| Air volume requirement (m3/h) | 250 |
| Standards | MD 2006/42/EC, LVD 2006/95/EC, EN 291-1:1991, EN 292-2:1995, EN 294:1992, EN 6020-1:1997, EN 1050:1996 |
TKM - SX1E Cafemino® Gas
| Roasting capacity (kg/h) | Light 6 - Dark 5 |
|---|---|
| Roasting time (minutes) | Light 10 - Dark 12 |
| Batch capacity (kg) | 50 - 1,000 g green coffee beans |
| Dimensions (W-H-D) cm | 81 x 100 x 52 |
| Recommended installation area (W-H-D) cm | 100 x 150 x 100 |
| Weight (kg) | 95 |
| Voltage | 110 - 220 - 230 - 380 - 415V |
| Frequency | 50 - 60 Hz |
| Heat source | Digitally controlled electronic ignition |
| Heating system | LPG natural gas heated thermal transfer |
| Number of motors | 3 |
| Power consumption (kW/h) | 0.57 |
| Power requirement (A) | 1PH 2.7 - 3PH 1.05 |
| Body type | Stainless steel, brass |
| Ambient temperature range (°C) | +4 / +40 |
| Gas connector (in) | 1/2 |
| Exhaust outlet Ø (mm) | 100 |
| Air volume requirement (m3/h) | 250 |
| Standards | CSA ANSI Z83.11-2006/CSA 1.8-2006 Gas Food Service Equipment, MD 2006/42/EC, LVD 2006/95/EC, EN 291-1:1991, EN 292-2:1995, EN 294:1992, EN 6020-1:1997, EN 1050:1996 |
